　Three-phase Step Motor　　Three-phase Step Motor

　Three-phase Step Motor　　Two-phase Step Motor



Step Motor

Three-phase Step Motor

Parameter of Step Motor


Step Motor Model
phase

current
(A)

resistance
(Ω)

inductance
(mH)

torque
(N.M)

rotary
inertia
(g-cm2)

weight
(kg)

length
(mm)
step degree
Step Motor Driver

Photo of
 Step Motor
86BYGH3501
3
5.8
1.4
3.9
2
1300
2
69
0.6/1.2°
Step Motor
86BYGH3502
3
5.8
0.8
3.4
4
2400
3
97
86BYGH3503
3
5.8
1.2
6.0
6
3400
4
125
90BYG3501
3
3
1.2
3.5
2
1200
2.2
69
0.6/1.2°
Step Motor
90BYG3502
3
3
1.6
4.8
4
2400
3.6
98
90BYG3503
3
3
2.1
5.6
6
3600
4.8
128
110BYG3501
3
2.4
1.7
12.2
8
8400
7
158
0.6/1.2°
Step Motor
110BYG3502
3
2.4
1.4
13.2
12
12600
10
197
110BYG3503
3
3
1.7
18
16
16800
12
240
110BYGH3501
3
4.3
0.9
12
8
6000
5.0
124
0.6/1.2°
Step Motor
110BYGH3502
3
6.0
0.44
4.9
12
9720
6.6
148
110BYGH3503
3
6.5
0.8
15
16
13560
9
182
110BYGH3504
3
6.5
0.67
12
20
17400
11
216
130BYG3501
3
5
0.8
4
22
25
13
168
0.6/1.2°
Step Motor
130BYG3502
3
5
1
5
30
30
16
197
130BYG3503
3
5
1.3
13
36
35
18
225
130BYG3504
3
5
1.6
17.5
50
45
22
280

Step Motor

Two-phase Step Motor


Parameter of Step Motor

Step Motor
(1axes)

Step Motor
(2axes)
phase

current
(A)

resistance
(Ω)

inductance
(mH)

torque
(N.M)

rotary
inertia
(g-cm2)

weight
(kg)

length
(mm)
step degree
Step Motor Driver

Photo of
 Step Motor

28BYGH250
Step Motor

Step MotorManualManual

Step Motor Download
28BYGH2501
28BYGH2501-15
2/4
0.67
5.6
4.2
0.06
9
0.11
31
0.9/1.8°
2HB024M
Step Motor Driver
Step Motor
28BYGH2502
28BYGH2502-15
2/4
0.67
6.8
4.9
0.09
12
0.14
44
28BYGH2503
28BYGH2503-15
2/4
0.67
9.2
7.2
0.12
18
0.2
50

42BYGH250
Step Motor

Step MotorManualManual

Step Motor Download
42BYGH2501
42BYGH2501-10
2/4
1.33
2.1
2.5
0.22
35
0.22
34
0.9/1.8°
2HB024M
Step Motor Driver
Step Motor
42BYGH2502
42BYGH2502-10
2/4
1.68
1.65
3.2
0.36
54
0.28
40
42BYGH2503
42BYGH2503-10
2/4
1.68
1.65
2.8
0.44
68
0.35
48

57BYG250
Step Motor

Step MotorManualManual

Step Motor Download
57BYG2501
57BYG2501-15
2/4
1.1
3.6
3.6
0.3
57
0.5
41
0.9/1.8°
2HB024M
Step Motor Driver
Step Motor
57BYG2502
57BYG2502-15
2/4
0.85
7.1
9
0.5
110
0.6
51
57BYG2503
57BYG2503-15
2/4
1.2
5
8
0.6
135
0.65
56
57BYG2504
57BYG2504-15
2/4
1.5
3.6
6
1.0
200
0.9
76

57BYGH250
Step Motor

Step MotorManualManual

Step Motor Download


57BYGH2501
57BYGH2501-15
2/4
2/2.8
1.4/0.7
2.2
0.4/0.6
120
0.45
41
0.9/1.8°
2HB024M
Step Motor Driver
Step Motor
57BYGH2502
57BYGH2502-15
2/4
2/2.8
1.6/0.8
3.2
0.7/0.9
260
0.65
51
57BYGH2503
57BYGH2503-15
2/4
2/2.8
1.8/0.9
4.5
0.9/1.2
300
0.8
56
57BYGH2504
57BYGH2504-15
2/4
2/2.8
2.2/1.1
5.6
1.5/1.8
400
1
76

86BYG250
Step Motor

Step MotorManualManual

Step Motor Download
86BYG2501
86BYG2501-28
2/4
4.5
0.4
1.4
1.3
560
0.8
62
0.9/1.8°
2HB024M
Step Motor Driver
Step Motor
86BYG2502
86BYG2502-28
2/4
4.0
0.8
4.5
2.6
1100
2.4
94
86BYG2503
86BYG2503-28
2/4
4.0
1.2
6.6
3.6
1800
3.6
134

86BYGH250
Step Motor

Step MotorManualManual

Step Motor Download
86BYGH2501
86BYGH2501-10
2/4
2.8
1.4
3.9
3.3
1000
1.5
65
0.9/1.8°
2HB024M
Step Motor Driver
Step Motor
86BYGH2502
86BYGH2502-10
2/4
4.2
0.8
3.4
4.5
1400
2.2
80
86BYGH2503
86BYGH2503-10
2/4
4.2
1.2
6.0
8
2700
3.6
118
86BYGH2504
86BYGH2504-10
2/4
4.2
1.25
8.0
12
4000
5.4
156

90BYG250
Step Motor

Step MotorManualManual

Step Motor Download
90BYG2501
--
2/4
4
0.6
3.5
2
1200
2.2
69
0.9/1.8°
2HB024M
Step Motor Driver
Step Motor
90BYG2502
--
2/4
4
0.8
7.8
4
2400
3.6
98
90BYG2503
--
2/4
4
1.5
11.6
6
3600
4.8
128

110BYG250
Step Motor

Step MotorManualManual

Step Motor Download
110BYG2501
--
2
5
0.9
10
8
8400
7
158
0.9/1.8°
2HB024M
Step Motor Driver
Step Motor
110BYG2502
--
2
5
0.9
15.2
12
12600
10
197
110BYG2503
--
2
5
0.9
18.5
16
16800
12
240

110BYGH250
Step Motor

Step MotorManualManual

Step Motor Download
110BYGH2501
--
2/4
5.5
0.9
12
8
5500
5.0
99
0.9/1.8°
2HB024M
Step Motor Driver
Step Motor
110BYGH2502
--
2/4
6.0
0.44
4.9
12
7200
6.0
115
110BYGH2503
--
2/4
6.5
0.8
15
16
10900
8.4
150
110BYGH2504
--
2/4
8.0
0.67
12
20
16200
11.7
201

130BYG250
Step Motor

Step MotorManualManual

Step Motor Download
130BYG2501
--
2
6
0.8
12
22
30
16
198
0.9/1.8°
2HB024M
Step Motor Driver
Step Motor
130BYG2502
--
2
6
0.8
12
27
35
18
225
130BYG2503
--
2
7
0.7
9
36
45
22
282



　　

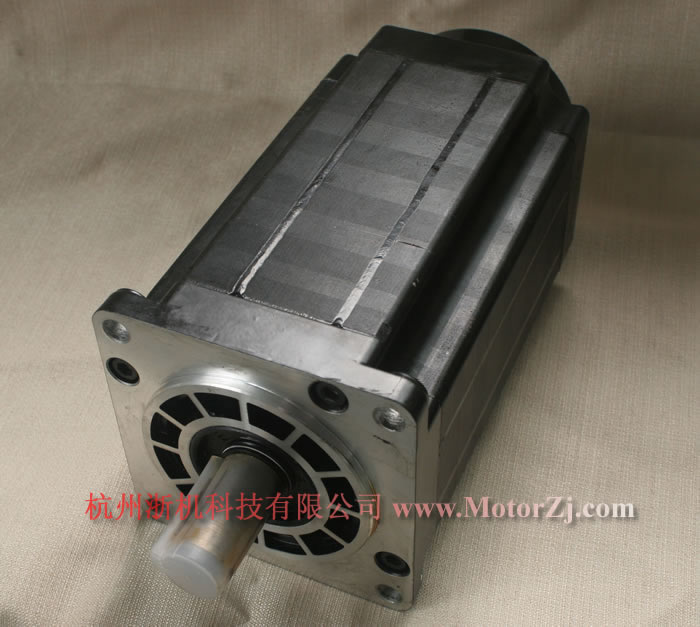

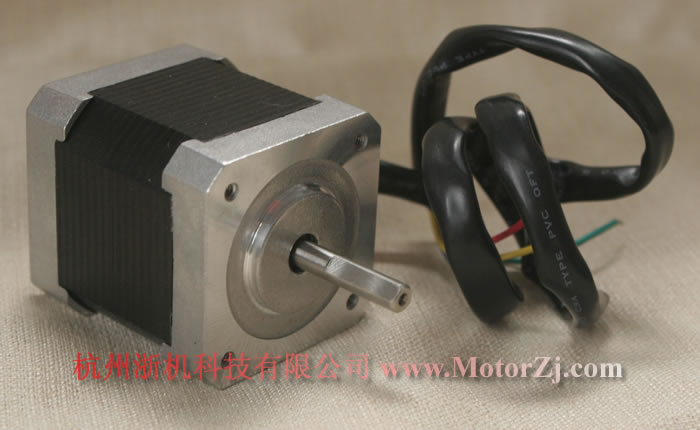

Photo Specification: Step Motor

Photo Specification: Step Motor

Photo Specification: Step Motor

Photo Specification: Step Motor

Photo Specification: Step Motor

Photo Specification: Step Motor

Photo Specification: Step Motor

　
